Importing a GDC Case List into ISB-CGC

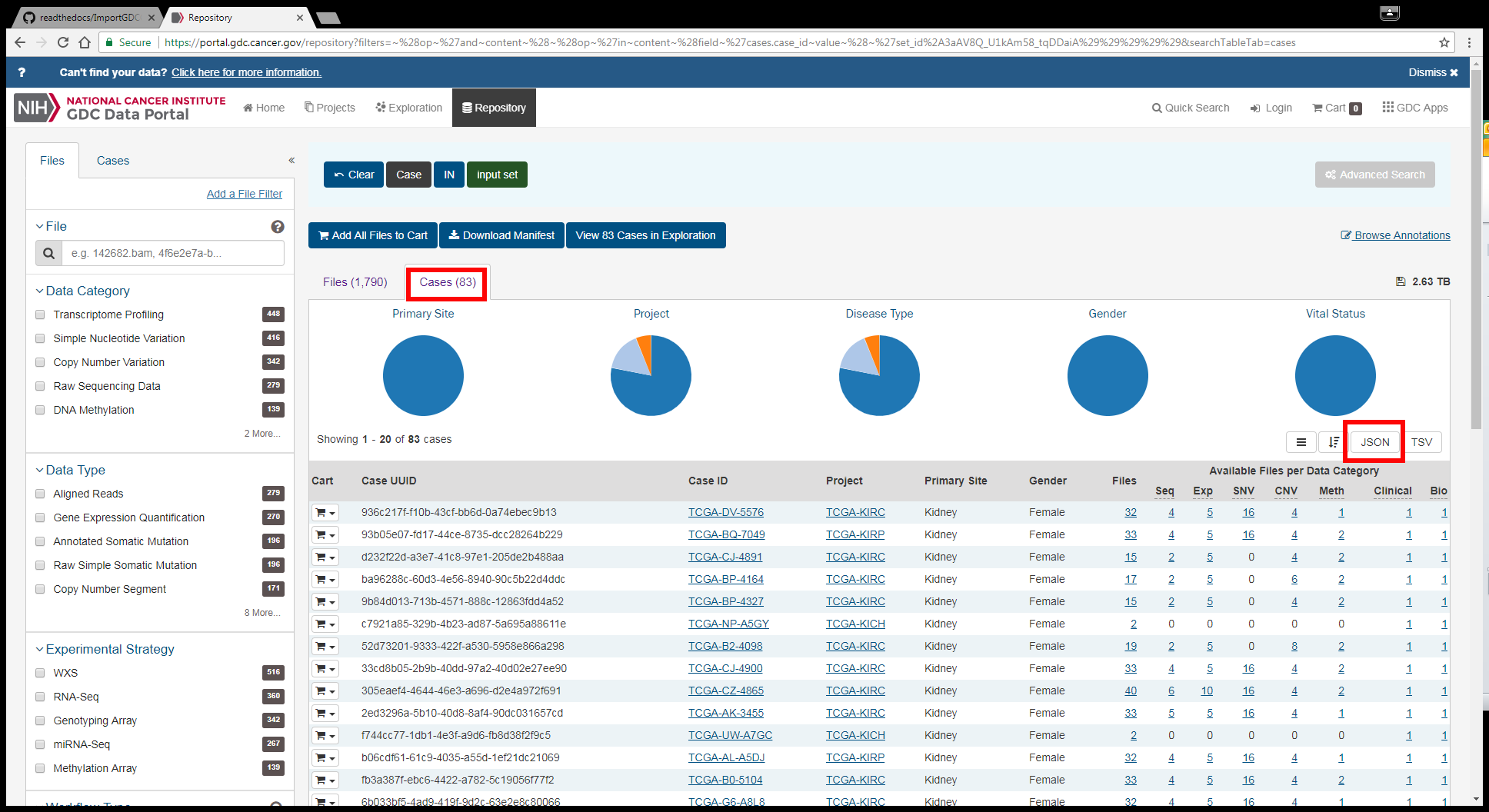

In addition to the file manifest, GDC also allows users to export case lists from your searches as shown in the image below:

../../_images/CaseExport2.png

Note that the ability to export a case list in JSON format exists in multiple places in the GDC Data Portal, however in all instances the process and the results are the same. As we did with the file manifest, in this tutorial we’ll look at how to bring that case list into BigQuery and create a table that you can use as the basis for analyzing data in the ISB-CGC system. In this case, the GDC file is in JSON format, and while BigQuery does understand JSON there are special characteristics that BigQuery needs that unfortunately are not provided by the GDC file. So to get around the incompatibility, the first step is to convert the JSON into something that BigQuery can understand.

Converting JSON to tab delimited

Let’s start by looking at the data that GDC has provided. The data in your JSON file may be different, but the structure of the JSON will be exactly the same and that is the important point for this tutorial:

{
"demographic": {
  "gender": "female"
},
"submitter_id": "TCGA-B0-5104",
"project": {
  "project_id": "TCGA-KIRC"
},
"case_id": "fb3a387f-ebc6-4422-a782-5c19056f77f2",
"primary_site": "Kidney",
"summary": {
  "data_categories": [
    {
      "file_count": 2,
      "data_category": "DNA Methylation"
    },
    {
      "file_count": 1,
      "data_category": "Clinical"
    },
    {
      "file_count": 1,
      "data_category": "Biospecimen"
    },
    {
      "file_count": 5,
      "data_category": "Transcriptome Profiling"
    },
    {
      "file_count": 16,
      "data_category": "Simple Nucleotide Variation"
    },
    {
      "file_count": 4,
      "data_category": "Copy Number Variation"
    },
    {
      "file_count": 4,
      "data_category": "Raw Sequencing Data"
    }
  ],
  "file_count": 33
}

For our purposes, the data in the “summary” section can be ignored. Since ISB-CGC doesn’t store all the files from GDC, having the file count stored in a table doesn’t do us much good. So what are useful are the Project ID, Primary Site, Case ID and Gender. Those can be easily parsed out and put into a tab-delimited file with a simple Python script:

#! /usr/bin/python
import json
import argparse

def main(args):
      inputfile = open(args.inputfile,'r')
      outputfile = open(args.outputfile,'w')
      header = "project_short_name\tprimary_site\tgdc_case_id\tgender\n"
      outputfile.write(header)
      data = json.load(inputfile)

      for entry in data:
              project = entry['project']['project_id']
              site = entry['primary_site']
              case = entry['case_id']
              gender = entry['demographic']['gender']
              outputfile.write(("%s\t%s\t%s\t%s\n") % (project,site,case,gender))

      outputfile.close()

if __name__ == "__main__":
      parser = argparse.ArgumentParser()
      parser.add_argument("-i", "--inputfile", required = True, help = "JSON file from GDC")
      parser.add_argument("-o", "--outputfile", required = True, help = "File to save")
      args = parser.parse_args()
      main(args)

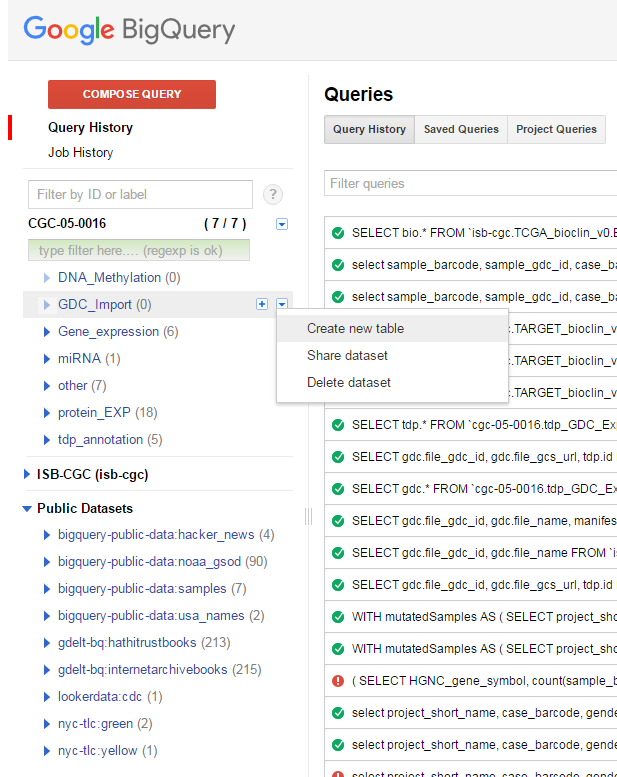

Once the tab-delimited file has been created the next step is to upload the information to a new BigQuery table. As with the file manifest example, the first step is to create a new table:

../../_images/CreateTable1.png

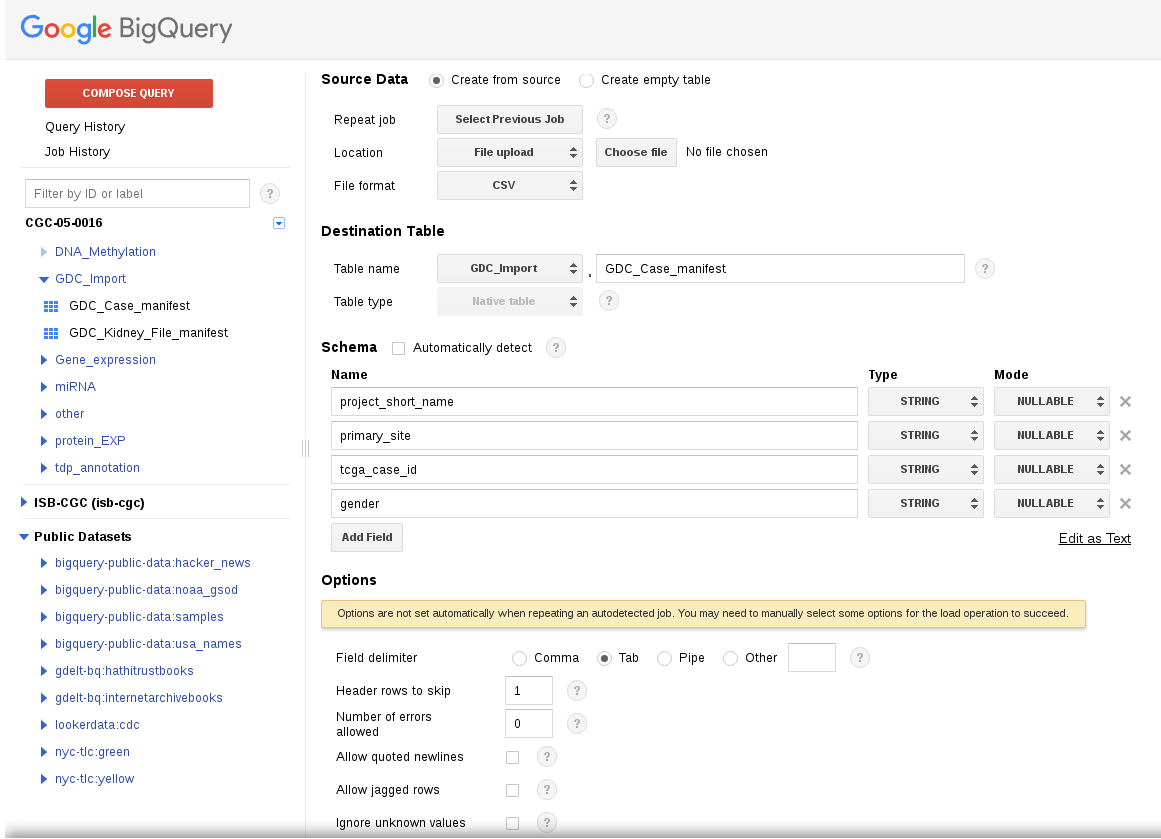

While we could allow BigQuery to automatically determine the names of the columns, it is also possible to provide those names yourself in case you wish to customize the names. That process is outlined in the figure below:

../../_images/CustomColumnNames.png

Once the process is finished, there will be a new table with the information obtained from the GDC. However, there is one additional issue that needs to be handled. The JSON file downloaded from the GDC contains the case UUID, but not the case barcode. Since many people are more comfortable using barcodes (and the ISB-CGC system largely uses them), it would be a good idea to modify our table to include both the case and sample barcode. Fortunately, ISB-CGC has a BigQuery table that contains all of the biospecimen information for TCGA, so finding the additional information requires a simple SQL query:

SELECT
 gdc.*, bio.case_barcode, bio.sample_gdc_id, bio.sample_barcode
FROM
 `isb-cgc.TCGA_bioclin_v0.Biospecimen` as bio,
 `cgc-05-0016.GDC_Import.GDC_Case_manifest` as gdc
WHERE
 bio.case_gdc_id = gdc.tcga_case_id

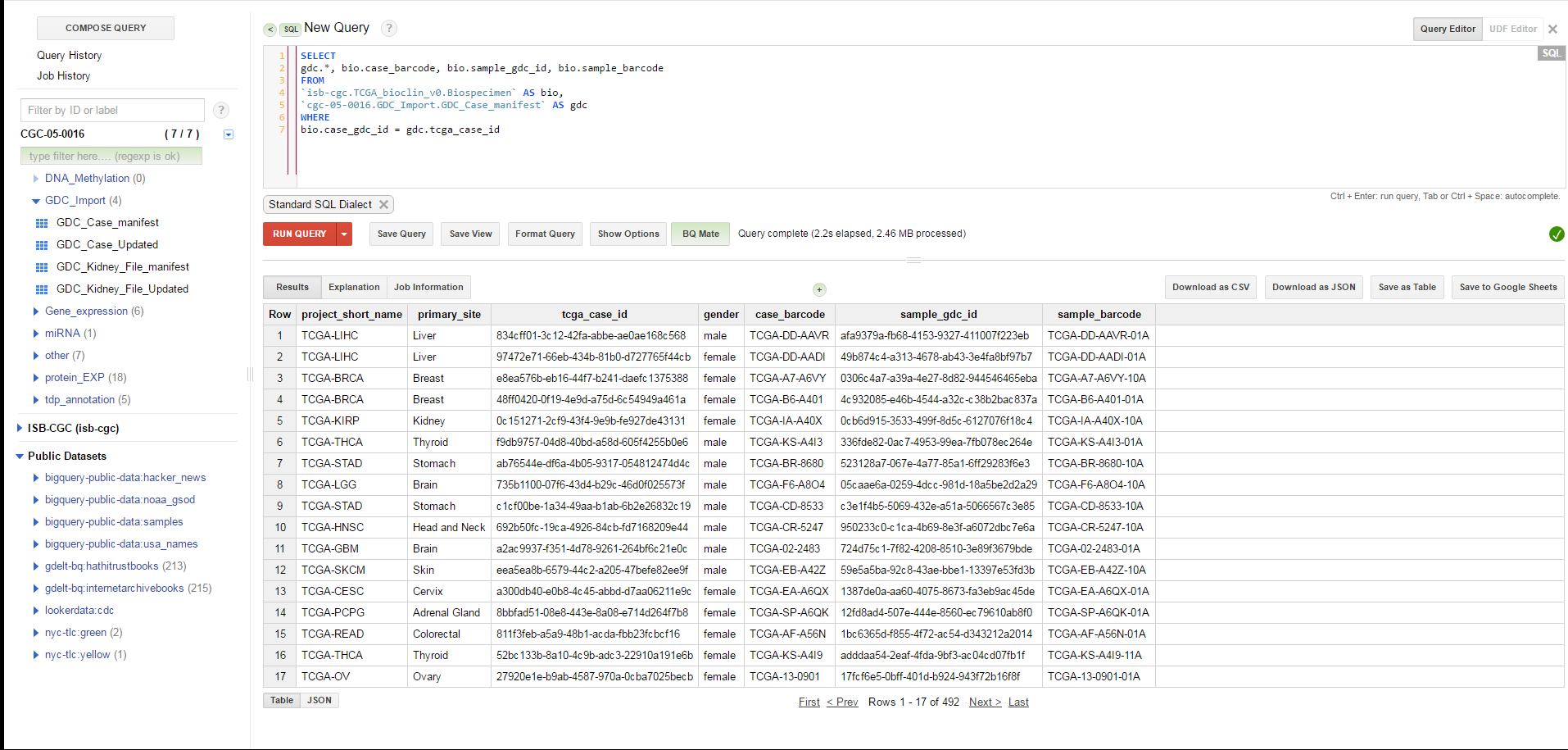

Once this query is complete, simply save the results as a new table and you now have your GDC case list available to you in BigQuery.

../../_images/FinalCaseTable.png
